Description

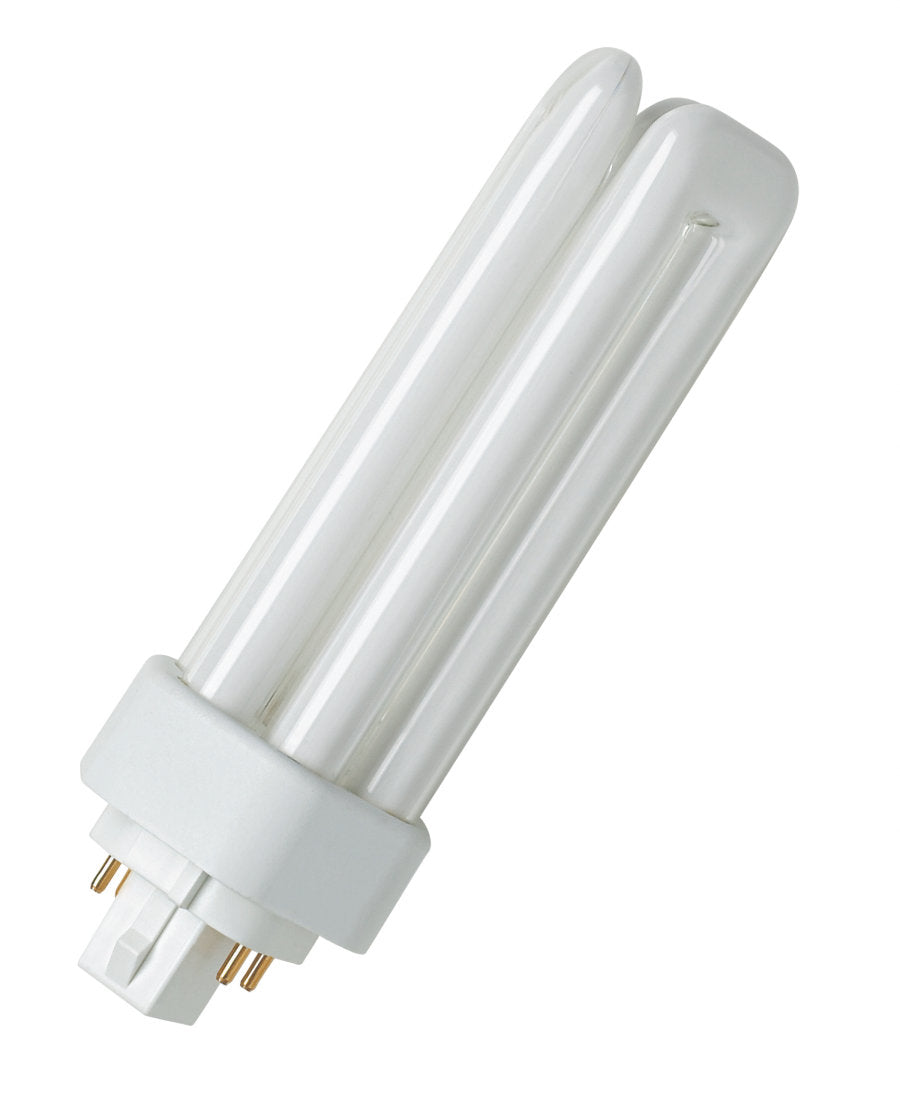

The Osram DULUX T/E PLUS 26W/840 is a compact fluorescent replacement lamp with a four-pin GX24q-3 base and LUMILUX cool white light. Its listed light output is 1,750 lumens.
For electronic control gear (ECG) operation only. Before ordering, check that your existing lamp and fitting match the 26W rating, GX24q-3 base and overall length of 131.5mm.
The listed service life is 13,000 hours, with a nominal lamp lifetime of 20,000 hours. Full technical and packaging information is retained below.
Technical Data
Electrical data
Nominal current
0.33 A A
Photometrical data
Light color (designation)
LUMILUX Cool White
Rated LLMF at 4,000 h
0.84
Rated LLMF at 6,000 h
0.83
Rated LLMF at 8,000 h
0.81
Rated LLMF at 12,000 h
0.79
Rated LLMF at 16,000 h
0.78
Rated LLMF at 20,000 h
0.9
Luminous flux
1750 lm
Color rendering index Ra
80…89
Dimensions & weight
Overall length
131.50 mm
Length with base excl. base pins/connection
116,00 mm
Product weight
62.5 g
Temperatures & operating conditions
Ambient temperature range
-5…+40 °C
Lifespan
Service life
13000 h
Nominal lamp life time
20000 h
Additional product data
Mercury content
2.0 mg
Appropriate disposal acc. to WEEE
Yes
Product remark
For ECG operation only
Certificates & standards
Energy efficiency class
G
Energy consumption
28.00 kWh/1000h
Country specific categorizations
ILCOS
FSMH-26/840-/P/-GX24q-3
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
18-04-2022
Primary Article Identifier
4050300342283
Declaration No. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4050300342283 | FS
|
1 | 45mm x 48mm x 142mm | 78.00g | 0.31dm³ |
| 4050300342290 | VS
|
10 | 260mm x 159mm x 116mm | 853.00g | 4.80dm³ |
